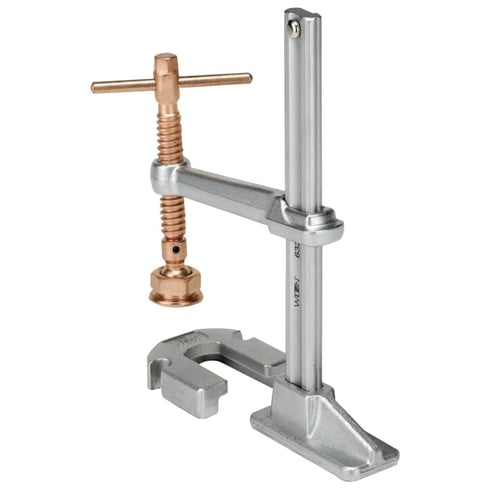

Welding Shoe Clamps, 8 1/2 in Opening


Product Description

Copper-plated spindle extends the life of the clamp by protecting the spindle and pad from harmful welding spatter. Heavy-duty shoe can be bolted or welded to workstation for maximum stability. Drop-forged arm slides up and down robust rail for rapid loading. Ideal for high-efficiency, production work, and repetitive welding.

Specifications

Body Material steel
Handle Material Steel
Handle Type Sliding Pin
Load Cap. [Nom] 2,600 lb
Opening Size [Max] 8-1/2 in
Rail Size 1-3/16 x 9/16 in
Spindle Diam 3/4 in
Throat Depth [Nom] 5-1/2 in
Type Spark-Dutyâ„¢ Welder's Shoe Clamp
Wt. 8 lb
