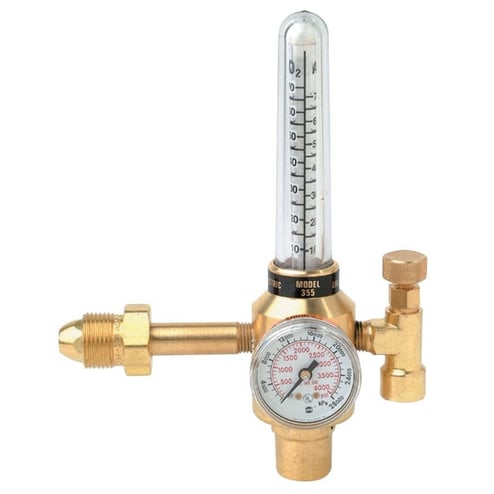

Flowmeters, Argon, CGA 580, Argon


Product Description

Regulator is pre-set at 20 PSIG. Construction incorporates regulator and flowmeter into one compact unit. Flow tube and float are easily changed for different gases. Dual calibration on Argon/Carbon Dioxide flow tube. Sensitive needle valve for fingertip control. One-piece encapsulated seat design, with an internal filter and PTFE Teflon® seat. Durable, easy-to-read flow tube and cover.

Specifications

Body Material Brass
Capacities Heavy Duty
Depth [Nom] 4.99 in
Diaphragm Material Neoprene
Gas Type Argon
Gauge Size 1-1/2 in (steel)
Inlet Connection CGA 580
Inlet Pressure [Max] 3000
Inlet Type CGA 580
Length [Nom] 4.99 in
Outlet Size 5/8 in
Series 355
Type Flowmeter Regulator
Width [Nom] 7.20 in
Wt. 2.9 lb
Prop65 WARNING: This product can expose you to Lead and lead compounds, 7439-92-1, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
