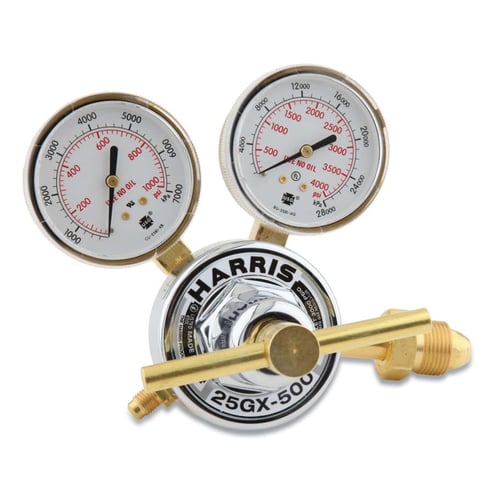

25GX Single-Stage Medium/Heavy-Duty HVAC Purging Regulator, 580, Argon, Helium, Nitrogen


Product Description

High-end features for economical price. Designed for HVAC and other nitrogen pressure testing and blanketing applications. Easy-to-operate brass T screw. Brass body and chrome-plated zinc bonnet for longer service life. Neoprene diaphragm for better pressure control. One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination. 2.5 inch steel dual scale easy-to-read gauges.

Specifications

Body Material Brass
Capacities Medium to Heavy
Depth [Nom] 4.99 in
Diaphragm Material Neoprene
Gas Type Argon; Helium; Nitrogen
Gauge Size 2-1/2 in (steel)
Inlet Connection CGA 580
Inlet Pressure [Max] 3000
Length [Nom] 4.99 in
Series 25GX
Type Regulator
Width [Nom] 7.20 in
Wt. 2.9 lb
Prop65 WARNING: This product can expose you to Lead and lead compounds, 7439-92-1, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
