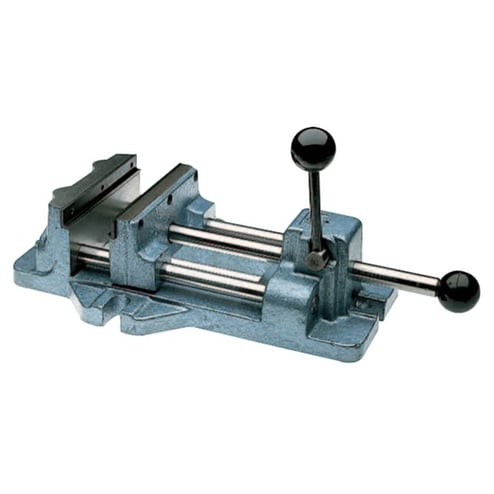

1204 4' DRILL PRESS VISECAM ACTION


Product Description

Simple push or pull on the center bar knob sets the jaw in position. Easy press locking lever cams the jaw ahead 3/32", existing a holding pressure that is adjustable from 400 to 1100 lbs. Recessed parallel steel jaw inserts level work, and can be removed to accommodate your jig and fixture components. The base is designed for clear through drilling applications. For added durability, bars and locking mechanisms are hardened and ground. The unique top locking lever can be raised or lowered to tighten or loosen against the workpiece.

Specifications

Jaw Material Steel
Jaw Opening [Nom] 4 11/16 in
Jaw Width 4 in
Locking Type Cam Locking Mechanism
Material Cast Iron
Nut Type Rapid Acting
Throat Depth [Nom] 1 5/16 in
Wt. 18 lb
Prop65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
